The Vulcan Construction System

ICON vulcan line A Rt 02

Designed and engineered from the ground up for volume 3D printing of homes with precision and speed.

Total Width 46.5 feet
Total Height 15.5 feet
Weight 9500 lbs
Voltage 230/240 V single phase
Print Height 10.5 feet
Print Width 36.5 feet
Print Length Infinite
Print Speed 5-10" /sec
Software BuildOS
Material Mixing & Pumping Magma System
Required Concrete Lavacrete
Vulcan Construction System

Meet Vulcan
Our Home-Sized
3D Printer


Designed and engineered from the ground up for volume 3D printing of homes with precision and speed.

Vulcan Construction System

Print Suite


Robotics + Software + Materials

The Vulcan construction system is a combination of hardware, materials, and software to construct homes and large-scale structures. Every part of the system has been designed, engineered, and built from the ground up at ICON to build the highest quality homes possible.

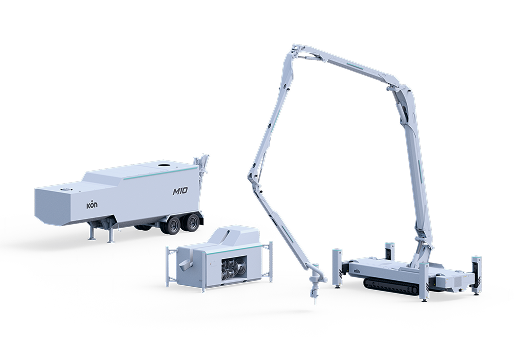

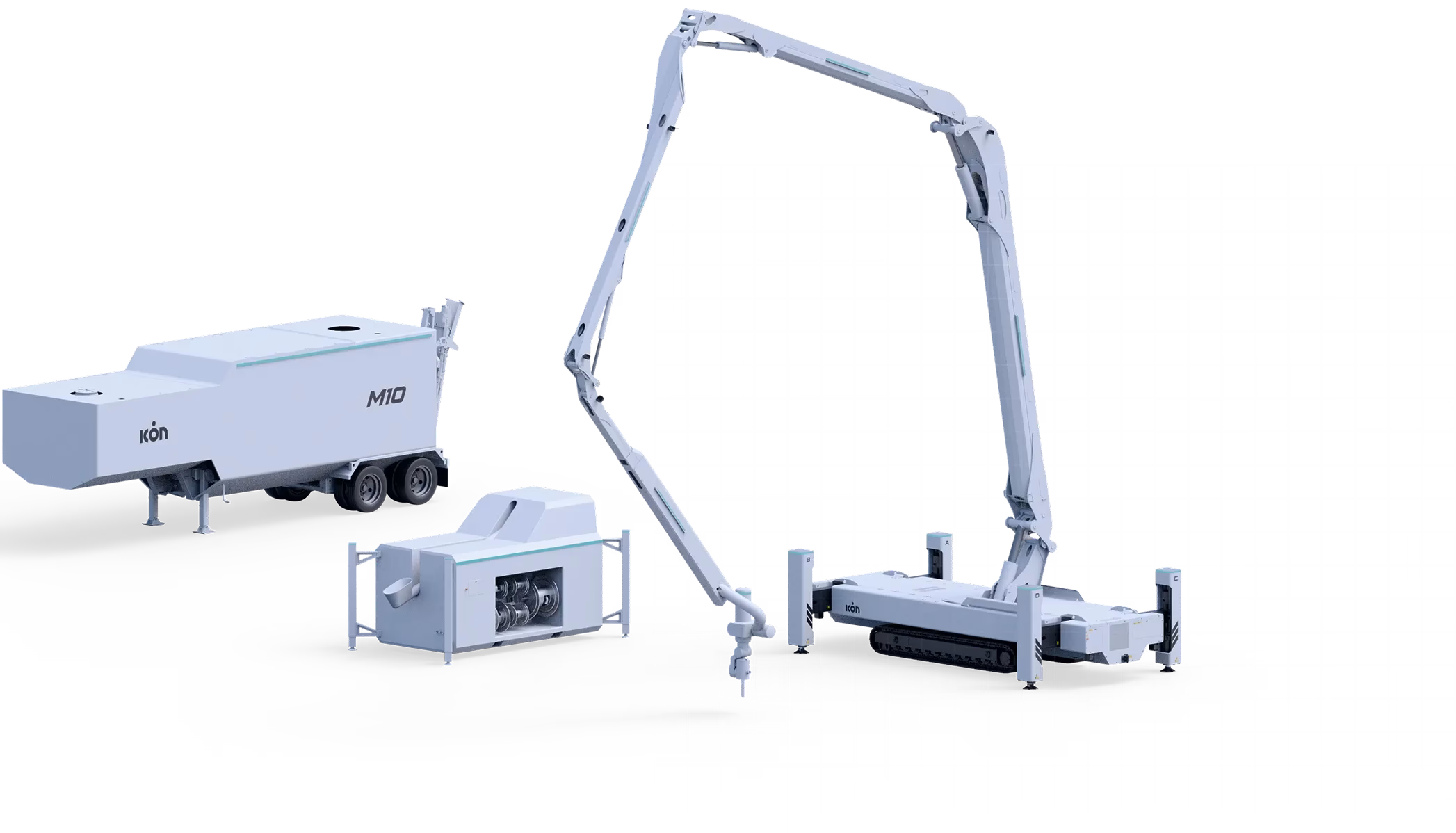

The Vulcan construction system is comprised of the Vulcan printer and the Magma portable cement mixing unit that prepares ICON’s special cement building material, Lavacrete, for printing. All of this hardware is driven by our BuildOS software suite. BuildOS generates and prepares architecture for printing, then controls the robotic hardware on-site to turn digital plans into physical homes.

Vulcan Product Suite

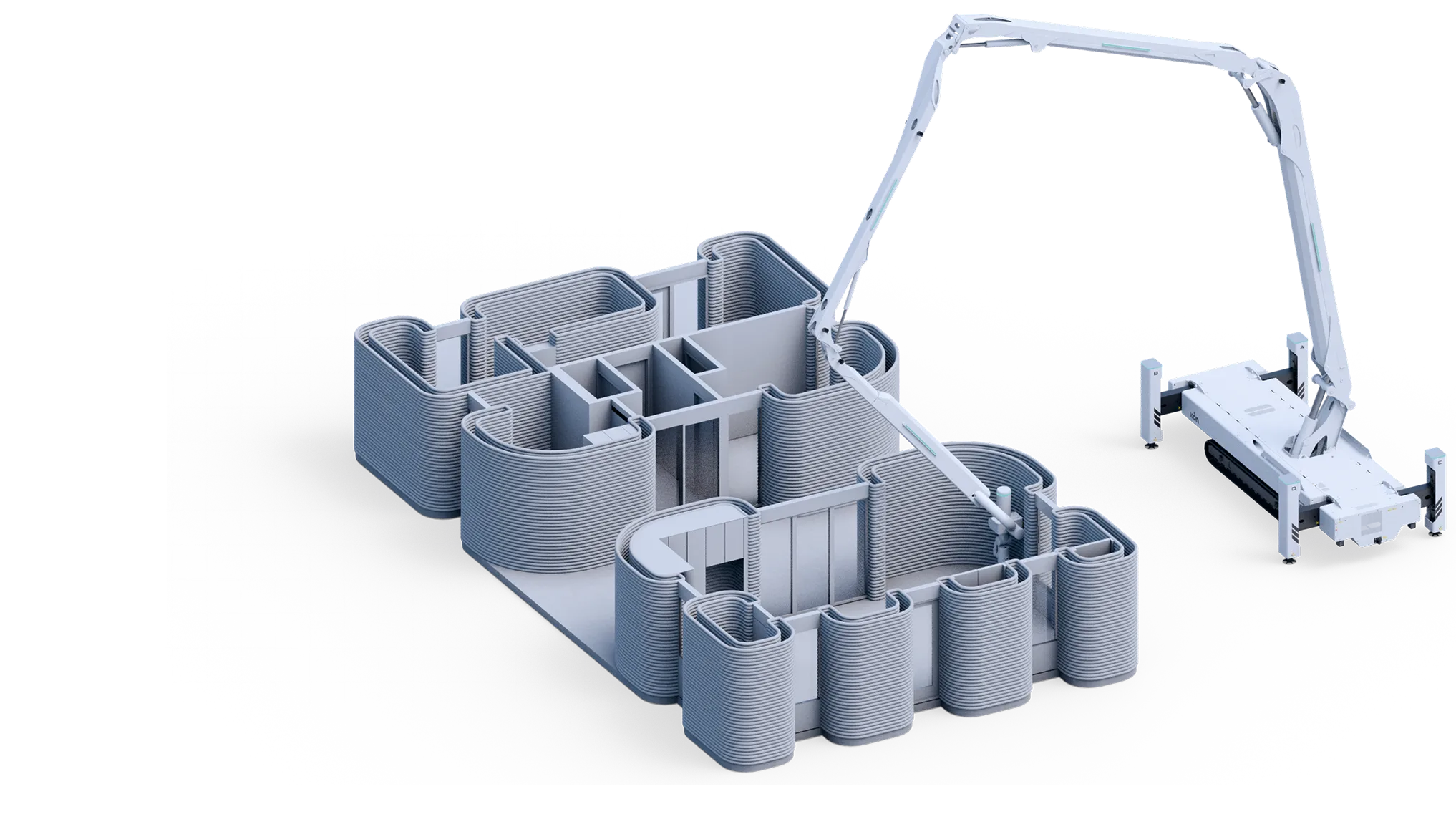

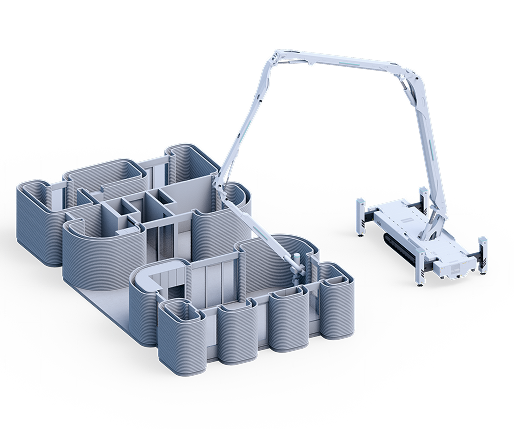

Vulcan is a large-scale, construction 3D-printer that prints entire homes on location. The printer is designed to be rapidly transported to build sites, then moved quickly from site to site. Vulcan prints directly on the ground or a poured slab.

A portable cement factory that feeds a Vulcan printer on location. Magma ingests dry Lavacrete, hydrates, and then adjusts the formula in real time based on the conditions at the build site itself. Once material is mixed, Magma pumps the Lavacrete to Vulcan for printing.

Lavacrete is a special cement created by ICON’s material science team to be both highly printable and incredibly strong. Lavacrete has gone through rigorous testing and development yeilding an extremely durable building material.

A collection of software products, BuildOS creates digital architecture and then helps control the robots that turn those designs into physical buildings. BuildOS software spans multiple device interfaces to accelerate construction through high-precision, parametric architecture for ICON’s construction operations.

Vulcan

Robotic Construction


The Vulcan is our third generation, large-scale 3D-printer system for additive construction. The current Vulcan system is 1.5x larger, 2x faster than our previous generation and capable of printing homes and structures up to 3,000 square feet without relocation. The Vulcan can produce resilient, single-story homes faster than conventional methods and with less waste and more design freedom.

Vulcan 2 5 white study 01 94
  • Vulclan Size 15' x 46'-6"

  • Bead Volume 12' x 38' x 150'

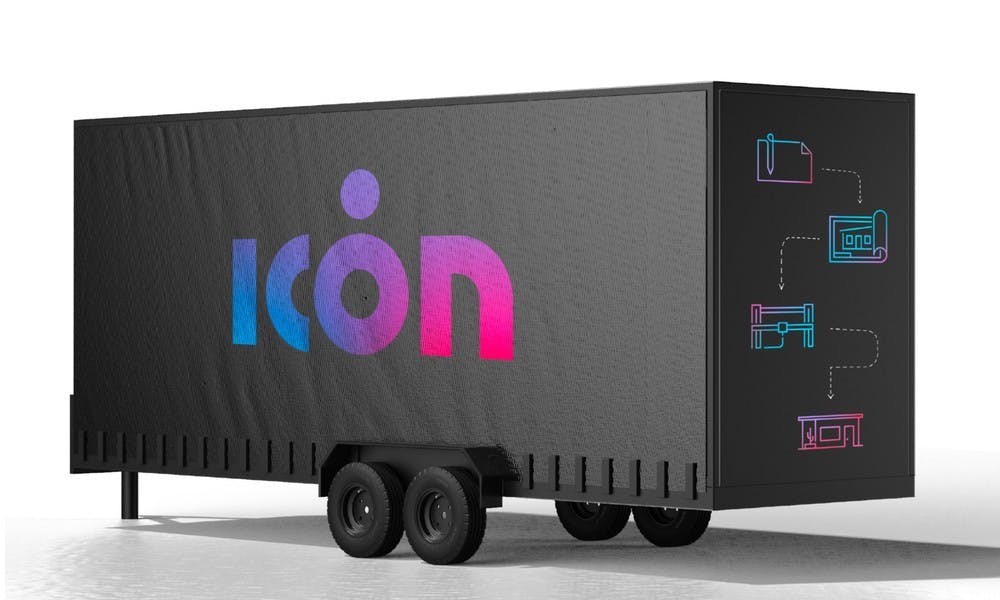

Magma

Mix Master


Magma is a smart, portable cement factory that feeds a Vulcan printer with material to print a home. Intelligent and working in perfect sync with a Vulcan printer on-site, Magma takes the guesswork out of complex, high-performance cementitious material.

The Magma system feeds Vulcan printers with ICON’s advanced cement-based material, Lavacrete. Using any of ICON’s proprietary Lavacrete blends, the Magma system mixes Lavacrete, additives, and water automatically, depending on current site weather conditions, then supplies the ready-to-print Lavacrete to the Vulcan. Think of Magma as an extremely smart print cartridge, super-sized for home construction.

Magma Updated

Weather and environmentally aware, a Magma unit adjusts & mixes ICON’s Lavacrete material in real time for the best possible material.

Build OS

Digital Native


Laptop Build OS Image

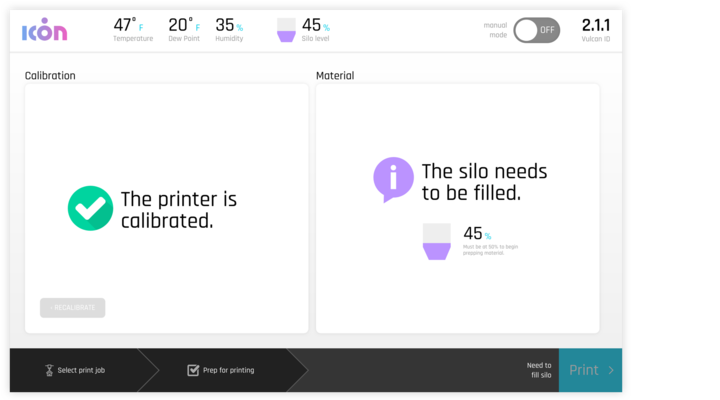

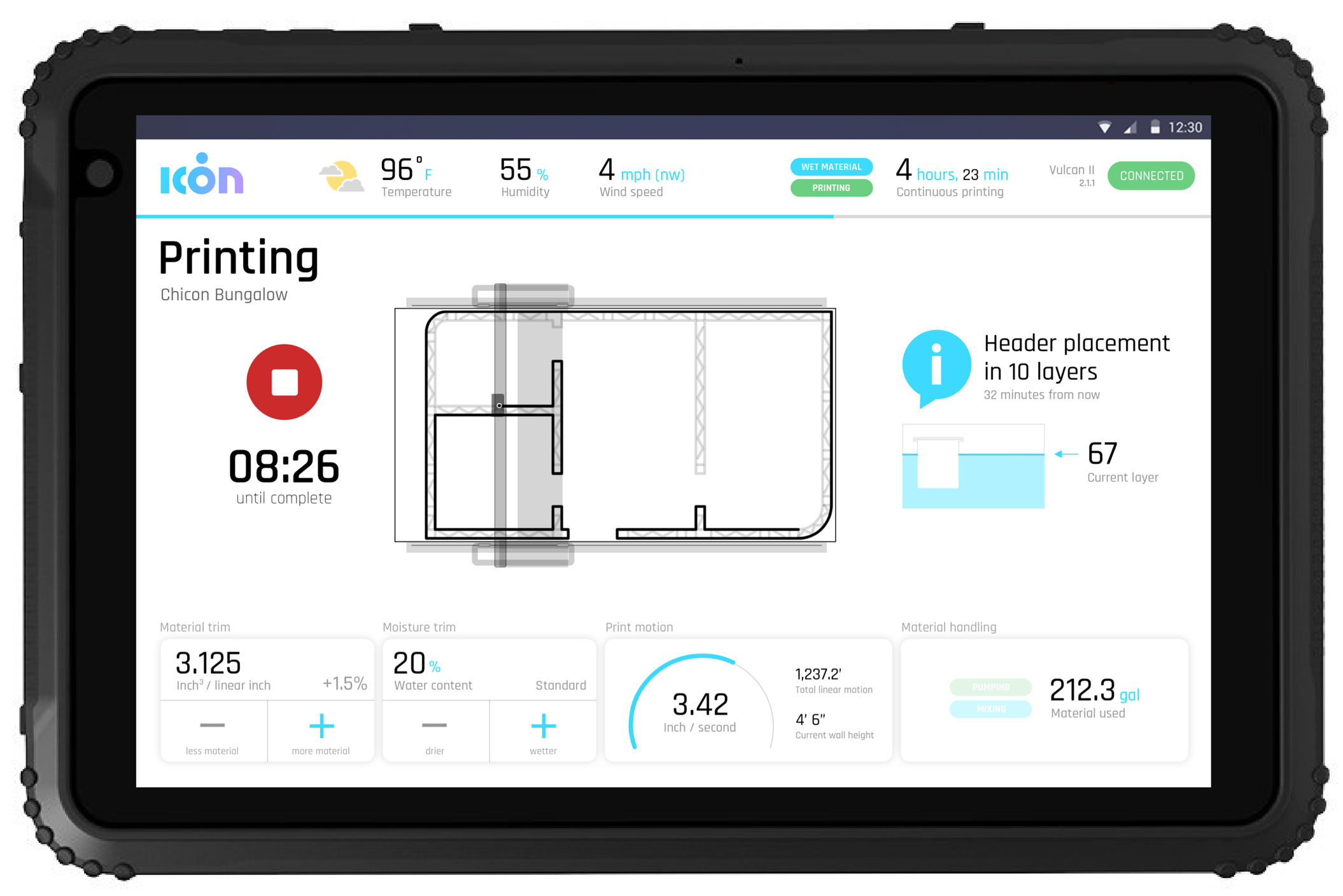

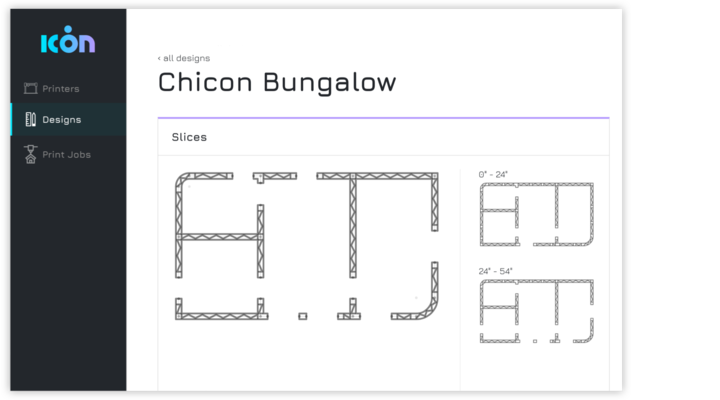

ICON’s tablet-based operating system controls every aspect of print operations via an intuitive, simple, and beautiful user interface.

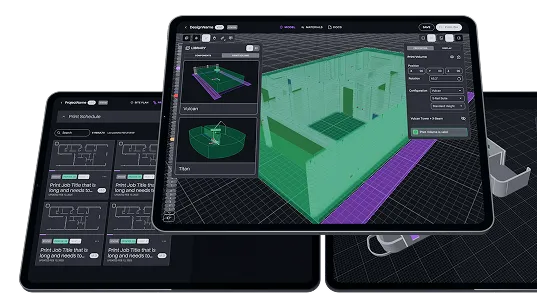

The BuildOS system translates floor plans into print jobs and then directs both Vulcan and Magma, using real-time data down to the millisecond to produce the highest quality printed structures in the world.

From its powerful CAD and print planning to enable machine learning and predictive analytics for Vulcan robots, this advanced software brings construction into the 21st century.

Materials

Rock Solid
Science


ICON 17th St treewall2

ICON’s proprietary Lavacrete can be printed at high speeds while retaining form, enabling homes to be built faster while keeping construction projects on schedule and on budget. As a high-strength concrete boasting a compressive strength of 2,000 - 3,500 psi, Lavacrete can withstand extreme weather and greatly reduce the impact of natural disasters while providing maximum efficiency.
